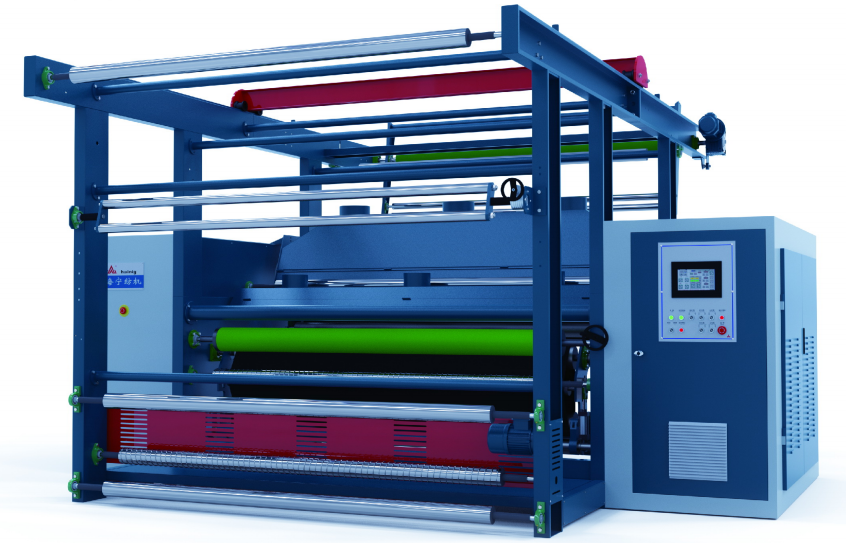

MB433D/S Double Rollers Thrice Polishing Machine



Applications:


Model MB433 double rollers thrice polishing machine is suitable for surface polishing of woven fabrics of natural and synthetic fibers, knitted fabrics and tufted fabrics. Mainly for polishing flannel, blankets and woolen fabrics,


The fabric surface is fluffy and soft after polishing, pile straight and shiny,  comparable to natural fabrics.




Main technical data:

Item

Data

Nominal width   (mm)

2000

2500

Diameter of polishing roller  (mm)

370

415

Rotation rate of polishing roller   (m/min)

300-900r/min(¦µ370)

/300-800r/min(¦µ415)

(Variable)

Direction of rotation

Forward/Reverse

Max. polishing temperature  (¡ãC)

250¡ãC

Speed of fabric   (m/min)

10-40

Heating power   (Kw)

50.4/57.6

Motor power (not include exhauster)  (kw)

33.5Kw/41.5Kw

Overall dimensions

L(mm)

5100

W(mm)

4530

5030

H(mm)

2625
