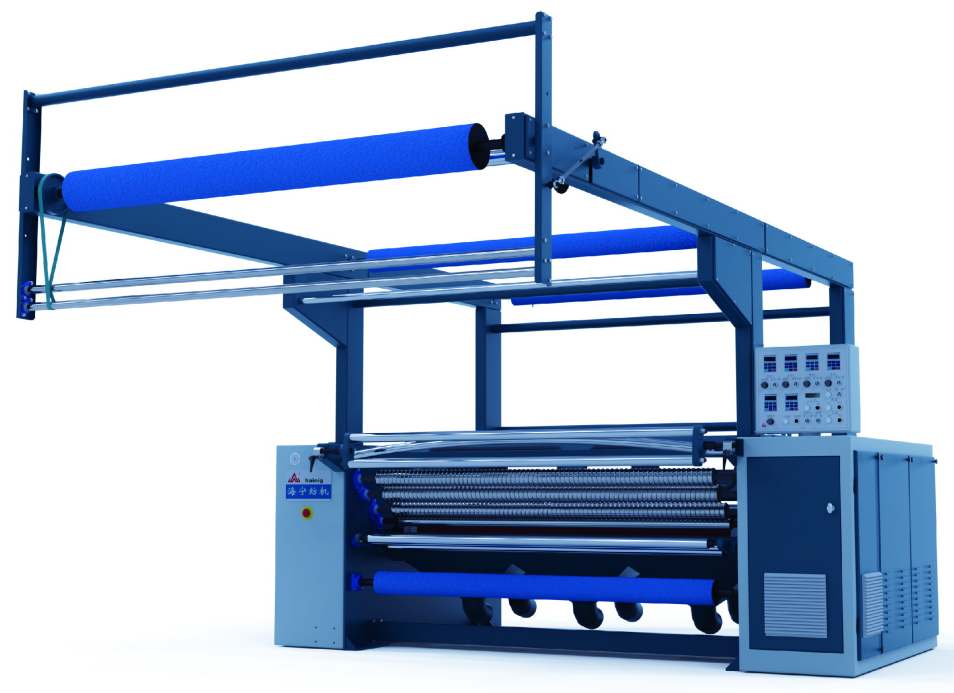

714A SUEDING MACHINE

Application:

The machine is suitable for surface sueding of knitting fabrics of cotton, synthetic and their relevant blends. After the processing of sueding, the fabric will produce the comfortable surface as soft as the surface of a peach.

 Feature:

1.Four high-speed sueding rollers(sanding papar or abrasive brush), which are adjusted variable by inverter.

2.Adopted bracket roller and press roller in the front and rear of sueding roller.

3.Adopted new designed bias notion structure to adjust the length of arc covered between the fabric and sueding roller.

4.Adopted floating roller controlled by electronic to adjust the fabrictension.

 Main technical data:

Item                    Data

Nominal width 1800 2200

Speed of fabric 8-30 variably

Diameter §æ190 §æ205

Sueding roller Rotation rate 500-1600

Number 4 Driving Power(kw) 4x5.5

Motor power(Not include exhaustor) 28.5

Overall dimensions 4990x3426(3826)x3000
