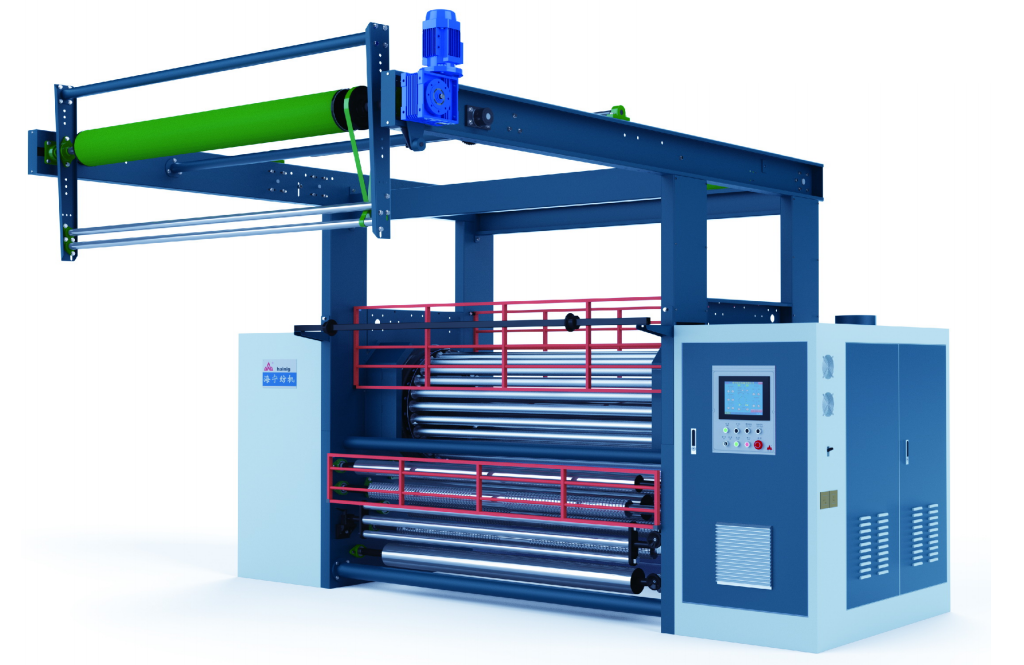

ME809 RAISING MACHINE

1.Application

   This machine is suitable for surface raising of tubular and open width knitting fabrics, which adopted intelligent controlling board with touch-screen display.

   The raising elements can be adjusted in a large scale, including drum speed, fabric speed, fabric tension, raising power, which is controlled by a monitor unit. This machine provides the flexibility to develop all kinds of fabrics.


Main features

1 Controlled by man-machine conversation,PLC and inverters. The level of an organic whole of machinery and electric equipment is very high.

2 Driven system with inverter controlled multi-motors, terse in structure, easy in maintenance.

3 The main parameters of drum speed, fabric speed, tension and raising power are all controlled by inverters allowing a wide variable range.

4 100 Sets of processing parameter can be stored to ensure the repeatability.

5 Set up the parameter in running, zero starting, automatic fabric feeding and reverting are available.

6 It has the function of pile roller and counter pile roller driving disengaged to prevent fabric  tearing and facilitate needle cleaning.

7 Trouble alarm and diagnosis are available.

8 Fastening fabric device is optional when processing different fabrics.



Items

Data

Nominal width (mm)

2000

Fabric speed (m/min)

6¡«45 (variable)

Drum speed (r/min)

90¡«130 (variable)

Raising roller diameter (mm)

¦Õ61

Number of raising roller (pcs)

24 (12pile and & 12counter pile)

Motor power (not include dust exhaustor and air compressor)  (kW)

24.7

Overall dimensions (L¡ÁW¡ÁH) (mm)

Basic£º4000¡Á4640¡Á3085

Q type£º2430¡Á4640¡Á3085

H type£º2950¡Á4640¡Á3085
