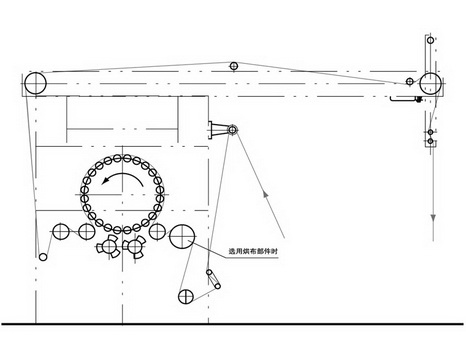

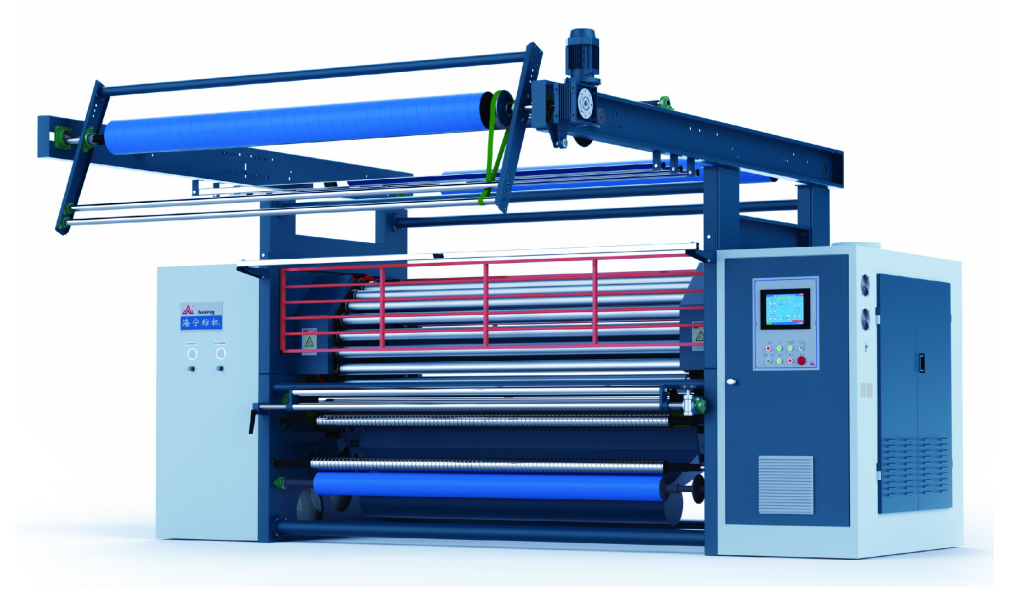

MB826/J HIGH EFFICIENT RAISING MACHINE



Appllcation:

This mchine is suitable for raising of woven fabrics and knitted fabrics and knitted fabrics of cotton,wool,synthetic fibres and relevant blends.The raising eiement can be adjusted in a large scale,including drum speed,fabric speed,fabric tension,raising intensity,which is controlled by a monitor unit.This machine provides the flexbity to develop all kinds fabrics.

 Feature:

 1. Driven and controlled by a screen TSS(touching sensor screen)¡¢PLC¡¢inverters,The level of an organic whole of machinery and electric equipment is very huge.

2. Drum Speed of fabric,fabric tension and rotation rate of raising rollers can be adjusted stepless within a large scope.

3. The driving beit of raising rollers are controlled by pnematic linear actuator it can be adjusted or be kept at a constant.

4. Automatic memorization of 100 sets of presetting process programs.

5. The function of trouble alarm and diagnosis.

6. Continuous raising machies and combined raising and shearing machine are avaible,the fabric tension con be kept contant between the single unit.


Main technical data:

 Item                   Data

Nominal width 2000 2500 2800

Speed of fabric 7-40 variable

Rotation rate of cylinder 70-120 variable

Roller diameter §æ70

Number of raising roller 24

Motor power(Not inlude dust exhaustor) 27.7 31.2 34.7

Overall dimensions 4350¡Á4580(4880/5180)¡Á3000

Machine weight 6600 6800
